R 1,545.00
WSC2-Compact-LS-EU868 • LoRaWAN Weather Station Kit for 3 Sensors, Solar, 3000mAh Li-Ion Battery
The WSC2-Compact-LS is Dragino's 3rd generation Weather Station Kit. It is designed for measuring atmospheric conditions to provide information for weather forecasts and to study the weather and climate.

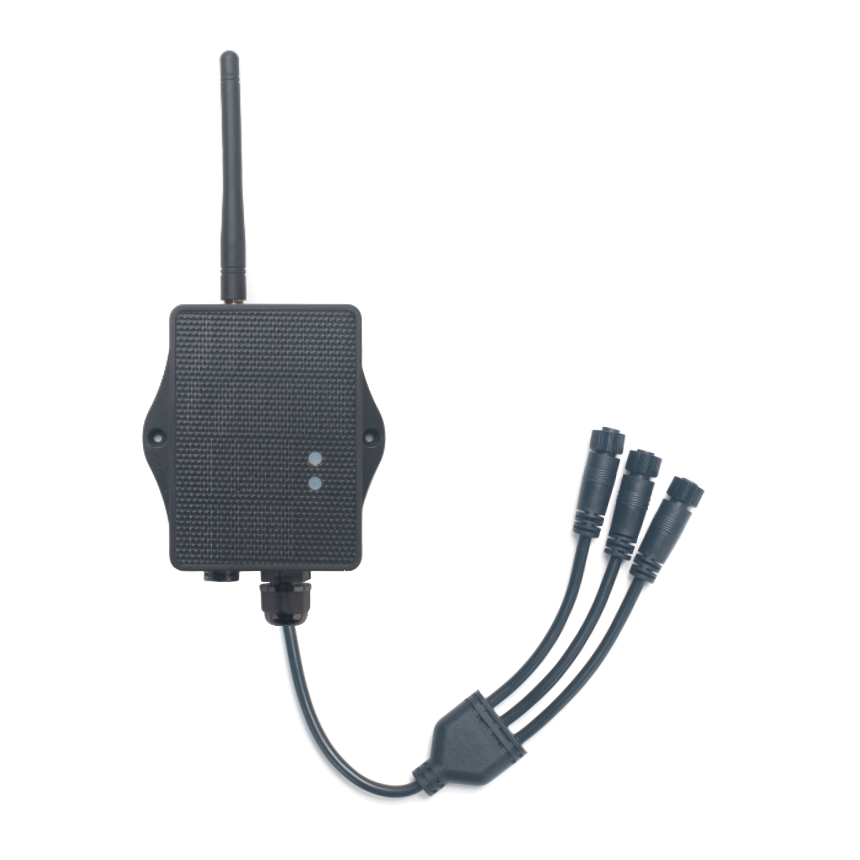

The wireless transmitter (WSC2-Compact-LS) and the sensors of the 3rd generation weather station kit are low power and no need extra power supply or MQTT. It’s target is to provide an easy installation method and low cost to provide a Long Range Wireless weather station kit.

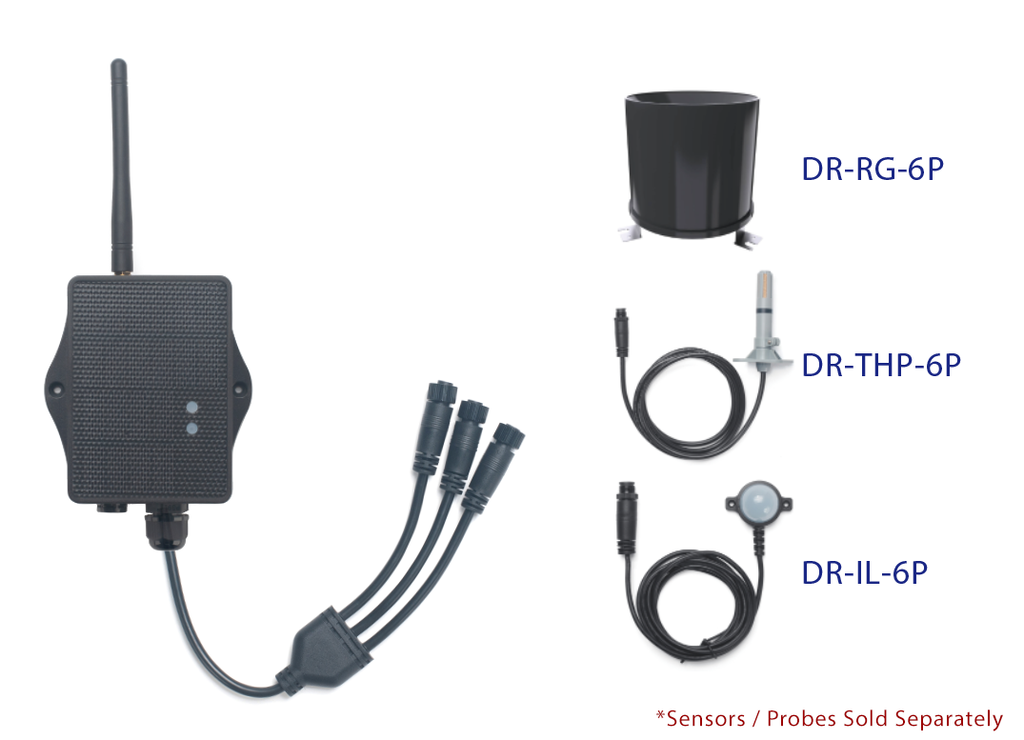

The Weather Station Kit includes a LoRaWAN transmitter, a 3 in 1 sensor for temperature/humidity/air pressure, Illuminance sensor and rain gauge.
The 3 in 1 sensor can measure below values: Temperature, Humidity, Air pressure. The transmitter uses I2C interface to communicate with the weather station. It also has a pulse count input that can be used to connect a tipping bucket Rain Gauge.
A lightweight, self-powered version that includes a built-in solar panel and battery. It is optimized for measuring key weather parameters and is ideal for quick and easy deployment in farms, greenhouses, and remote research sites.
Features:
- LoRaWAN 1.0.3 Class A
- Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
- Support external 3 in 1 weather sensor (DR-THP-6P): Temperature, Humidity, Air Pressure
- Support interrupt t Rain Gauge (DR-RG-6P) and Illuminance Sensor (DR-IL-6P)
- Easy to install, no need for additional MPTT or solar panels
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- AT Commands to change parameters
- IP66 Waterproof Enclosure
- 3000mAh Rechargeable Li-Ion battery
ICASA Type Approval Pending
