R 1,580.00

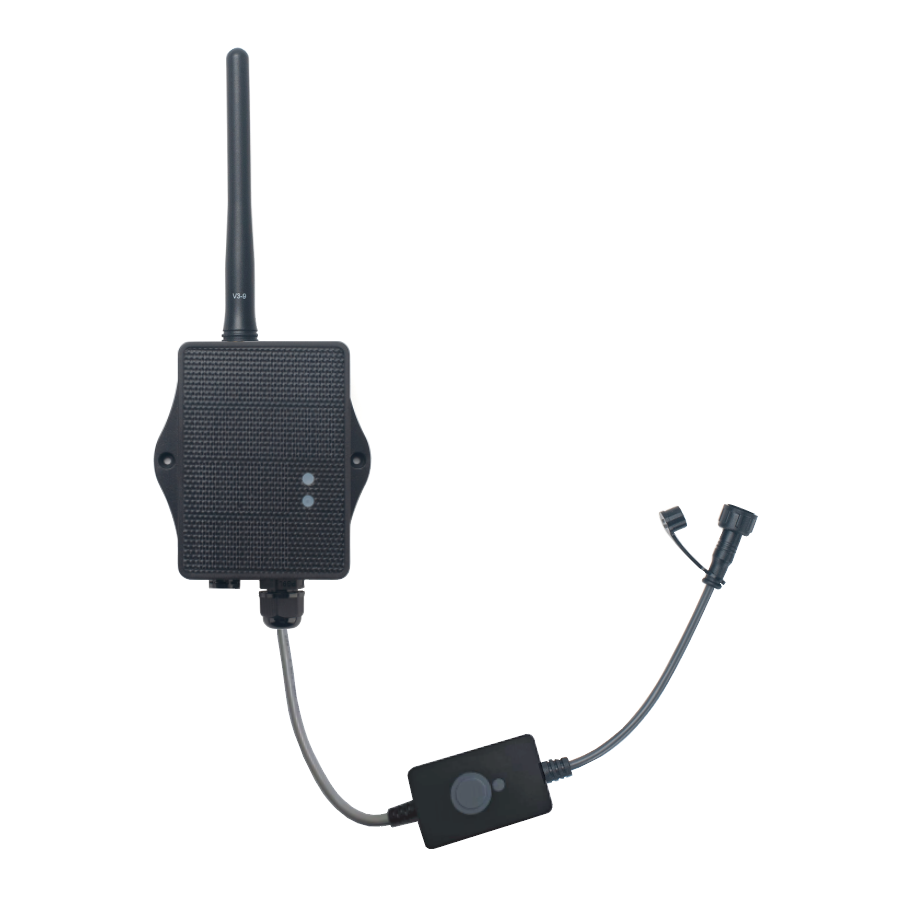

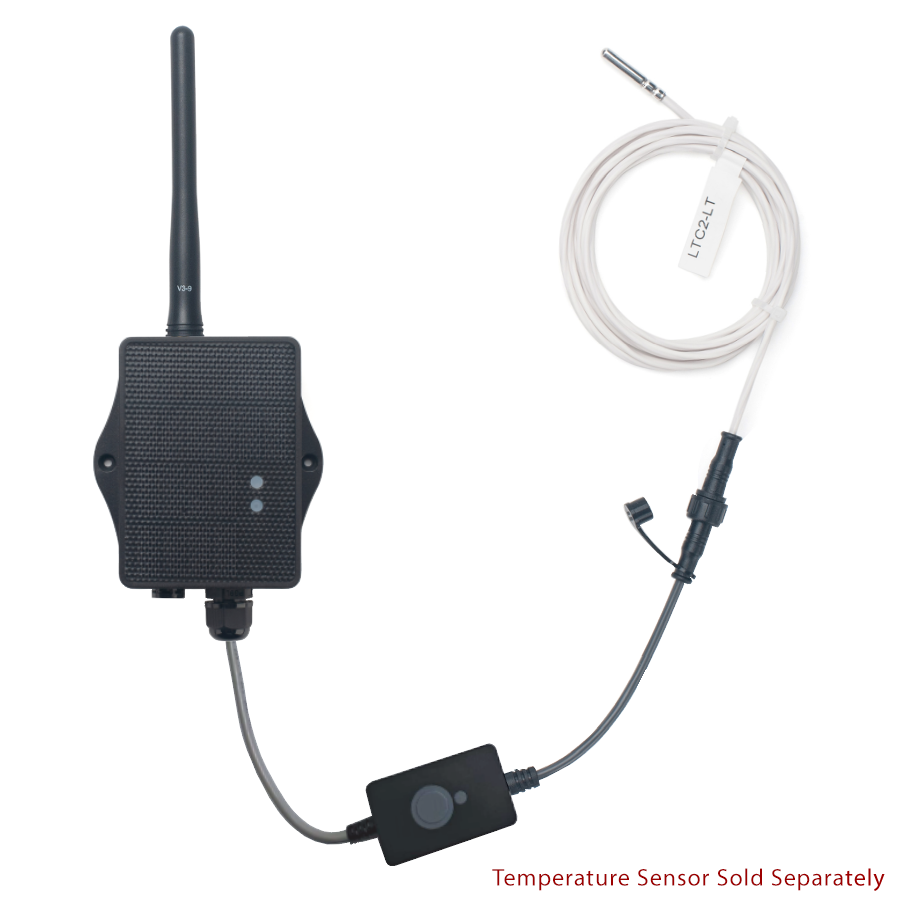

LTC1-NS-GE • NB-IoT Temperature Sensor for 3 Wire PT-100, Solar Panel with 3000mAh Li-Ion Battery
The Dragino LTC1 series Temperature Transmitter is designed to monitor temperature for different environment. It supports to read PT100 probe and convert the value to temperature and uplink to IoT server via LoRaWAN, NB-IoT or CAT-M1 protocol.
LTC1 series supports one temperature monitoring channel. Press the button to immediately sample and upload the data packet.
LTC2 series supports a maximum of 2 temperature monitoring channels.
LTC1/LTC2 series supports Datalog feature.
It supports BLE configure and wireless OTA update which make user easy to use.
The Dragino LTC1 series is powered by 8500mAh Li-SOCI2 battery or solar panel with Li-ion 3000mAh battery, it is designed for long-term use up to several years.
Features:
- NB-IoT Bands:B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
- Ultra-low power consumption
- For LTC1-NB/NS: max: 1 x monitor temperature channels
- For LTC1-NB/NS: Press the button to immediately take a sample and upload a data packet.
- For LTC2-NB/NS: max: 2 x monitor temperature channels
- Support 3-wire PT-100
- Temperature alarm
- Datalog Feature
- Support Bluetooth v5.1 remote configure and wireless OTA update firmware
- Uplink via MQTT, MQTTs, TCP, UDP or CoAP
- Uplink on periodically
- Downlink to change configure
- 8500mAh Li/SOCl2 Battery (LTC1-NB)
- Solar panel + 3000mAh Li-ion battery (LTC1-NS)
ICASA Type Approval Pending
