R 1,040.00

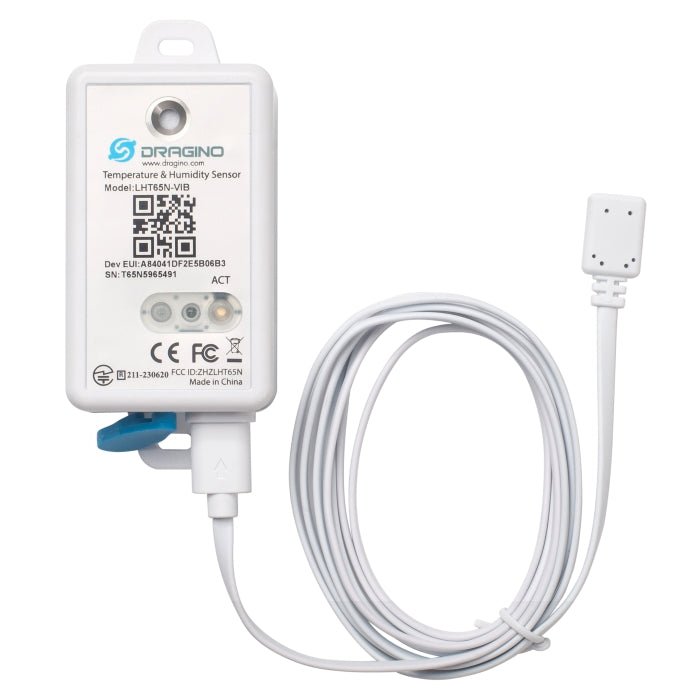

LHT65N-VIB-EU868 • LoRaWAN Vibration & Acceleration Sensor
The Dragino LHT65N-VIB LoRaWAN Vibration Sensor is designed to detect and measure vibrations, shocks, or accelerations of an object. By analyse the motion of the object, LHT65N-VIB can send meaningful results such as: Alarm, device runtime, counting, vibration strength to IoT platform for further analyse.
It targets professional wireless sensor network applications such as monitoring equipment status, water leakage alarm, usage statistics, vibration intensity detection, etc.
The LHT65N-VIB allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
LHT65N-VIB has a built-in 2400mAh non-chargeable battery which can be used for more than 3 years*.
LHT65N-VIB is fully compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.
*The actual battery life depends on how often to send data, please see battery analyser chapter.
Features:
- LoRaWAN v1.0.3 Class A protocol
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
- Detecting object vibration status
- Detect vibration alarm
- 3-axis accelerator for X, Y, Z
- Calcula device runtime
- Built-in Temperature & Humidity sensor
- Built-in 2400mAh battery for long time use
- Firmware upgradable via program port
- Remote configure parameters via LoRaWAN Downlink
- AT Commands to change parameters
ICASA Type Approval Pending
